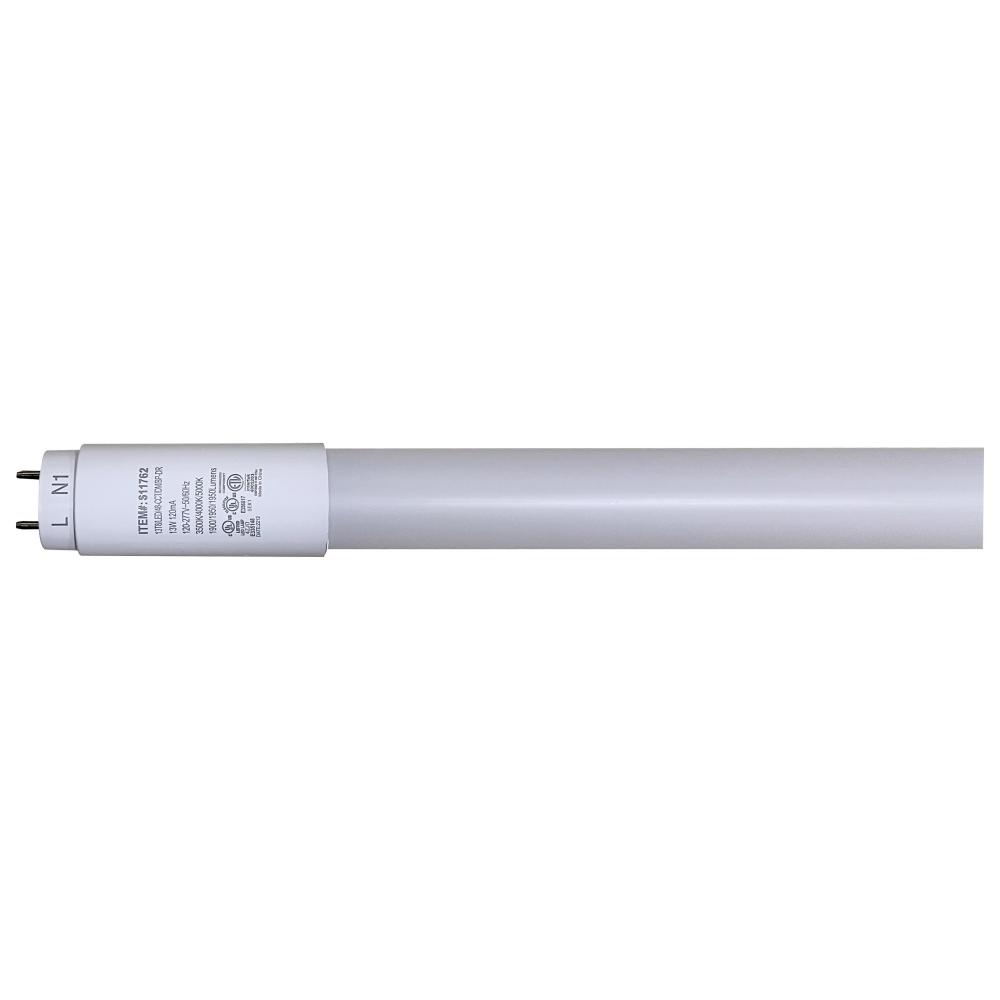

13 Watt T8 LED; CCT Selectable; Medium bi-pin base; 50000 Hours; Type A/B; Ballast Bypass or Direct (X3V6G)
$15.90
Call For Price
Enlarge Image
Add to Cart
Description:
13 Watt T8 LED; CCT Selectable; Medium bi-pin base; 50000 Hours; Type A/B; Ballast Bypass or Direct Replacement; Single or Double Ended Wiring; Glass with PET coating
Availability:
  • Manufacturer has 9 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 1.00"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: LED T8
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Yes-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3500K/4000K/5000K
right arrow Bulb Shape: T8
right arrow Diameter: 1
right arrow EA Length: 48
right arrow Harmonized Codes: 8539.52.0051
right arrow Length: 47.78
right arrow Lumens: 1900L/1950L/1950L
right arrow Shap Carton Width: 1
right arrow Ship Carton Height: 1
right arrow Ship Weight: 0.65
right arrow Warranty: 5 Year Limited - T8 LED Bulbs
right arrow Weight: 0.55
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Dual
right arrow Ballasting Requirements: Ballast required (Type A) or Ballast Bypass (Type B)
right arrow Beam Spread: 180
right arrow Bulb ANSI Base: G13
right arrow Bulb Base: Medium Bi Pin
right arrow Bulb Finish: White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.0278
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Neutral White to Natural Light
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimmable Function: Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: S-0VNZRQ
right arrow DLC Primary Use: Dual Mode Internal Driver (UL Type A and Type B)
right arrow Efficacy: 146.15/148.08/150.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow FCC Compliant: Yes
right arrow Feature 1: CCT Selectable - 3500K/4000K/5000K
right arrow Feature 2: Direct replacement for fluorescent T8 lamps
right arrow Feature 3: Ballast compatible or ballast bypass installation
right arrow Feature 4: NSF Certified - P.E.T. coated, shatter resistant glass tube
right arrow Feature 5: Compatible with select emergency backup and dimming ballasts
right arrow Feature 6: Dimmable
right arrow Feature 7: Rated for 50,000 hours
right arrow Flourescent Equivalent: 28W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 50W
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow IP Rating: IP20
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type A/B
right arrow Lamp End Type: Single Ended;Double Ended
right arrow Lamp Filament: LED
right arrow Lens Finish: Frost
right arrow Lens Material: Glass
right arrow Location Rating: Damp
right arrow Long Description: SATCO NUVO's S11762 premium LED T8 dual mode lamps offer the most versatility of any linear replacement lamp on the market. This lamp is compatible with ballasts and in ballast bypass systems with single or double-ended wiring to maximize ease of insta
right arrow Material: Glass / Plastic
right arrow Nominal Length: 48
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 25
right arrow Pack Type: Sleeve
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's premium LED T8 dual mode lamps offer the most versatility of any linear replacement lamp on the market. These lamps are compatible with ballasts and in ballast bypass systems with single or double-ended wiring to maximize ease of installat
right arrow SDS class: LED_Lamp
right arrow Shatter Proof Text: PET Coated
right arrow Short Description: 13T8/LED/48-CCT/DM/BP-DR
right arrow Surge Protection: Built-in-surge protection - 0.7KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Wattage Selectable: No
right arrow Watts: 13W
right arrow Standard Category: Lamps
right arrow Standard Subcategory: LED Lamps
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 3501-4000
right arrow Standard Wattage: 13w
Internal #:
X3V6G
