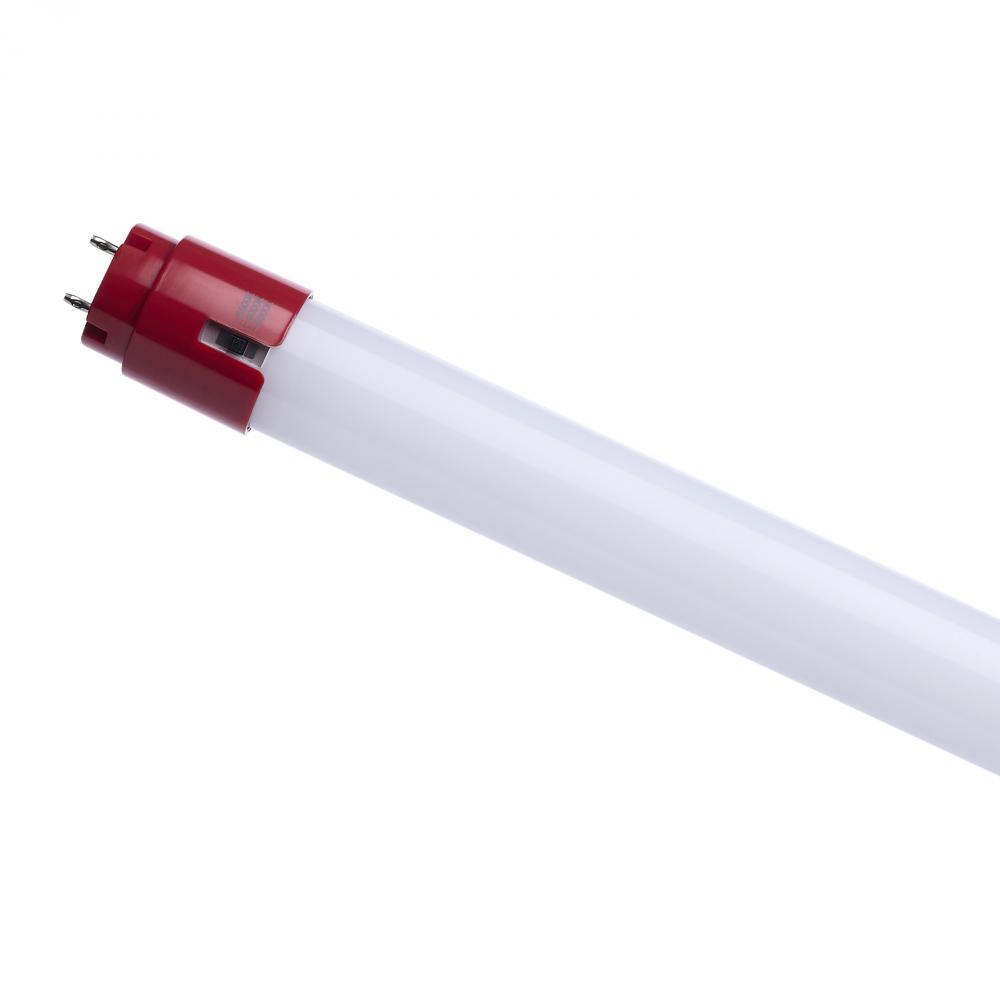

15 Watt T8 LED; 48 Inch; 35K/40K/50K CCT Selectable; Medium Bi Pin Base; Type B Ballast Bypass; (X9RNW)
15 Watt T8 LED; 48 Inch; 35K/40K/50K CCT Selectable; Medium Bi Pin Base; Type B Ballast Bypass; 120-277V
Product Specification
Item #
X9RNW
Dimensions
Width: 1.16"
Additional product details
Internal #
X9RNW
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
3500K/4000K/5000K
Bulb Shape
T8
Diameter
1.16
EA Length
51.57
Harmonized Codes
8539.52.0051
Length
47.78
Lumens
2000L
Shap Carton Width
1.38
Ship Carton Height
1.38
Ship Weight
1.15
Warranty
5-Years
Weight
1.12
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Bypass
Battery Chemistry
Lithium-ion (Li-ion)
Beam Spread
140
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
Frost
Carton Cubic Feet
0.0568
Cartons Per Unit
1
CCT Selectable
Yes
CEC
T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Neutral White to Natural Light
Country Of Origin
China
CRI
80+
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-ZM2STB
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy
133.33 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1
4' T8 with Integrated Emergency Battery Backup
Feature 10
DLC Listed
Feature 2
Type B - Ballast Bypass
Feature 3
Damp location rated
Feature 4
Enclosed fixture rated
Feature 5
CCT Selectable - 3500K/4000K/5000K
Feature 6
Pre-Wired Lamp Holders Included
Feature 7
Red End-Caps and Lamp Holders for Easy Identification
Feature 8
Replaces 32W Fluorescent Lamps
Feature 9
5 Year Warranty
Flourescent Equivalent
32W
Indoor Outdoor
Indoor
IP Rating
IP20
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Leg Spacing
0.51
Location Rating
Damp
Long Description
SATCO NUVO's S11732 LED T8 Lamps with Emergency Battery Backup are UL924 listed for use in emergency lighting applications. Custom lamp holders and set screws lock the lamp in place for a secure installation, and lamps feature red endcaps so they can b
Material
Aluminum / Polycarbonate (PC)
No Switching Cycles
1000
Nominal Length
48
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
0C (+32F) to +45C (+113F)
Pack Type
Sleeve
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's LED T8 Lamps with Emergency Battery Backup are UL924 listed for use in emergency lighting applications. Custom lamp holders and set screws lock the lamp in place for a secure installation, and lamps feature red endcaps so they can be easil
SDS class
LED_Lamp
Short Description
15WT8/LED/CCT/EM/BP
Specification Notes
90-minute discharge time; 24 Hour Recharge Time
Technology
LED
Title 20 Compliant
Yes
Title 24 Compliant
No
Total Harmonic Distortion
<25%
Wattage Selectable
No
Watts
15W
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
120
00
/
/ 1
($120.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 2430 items available.
