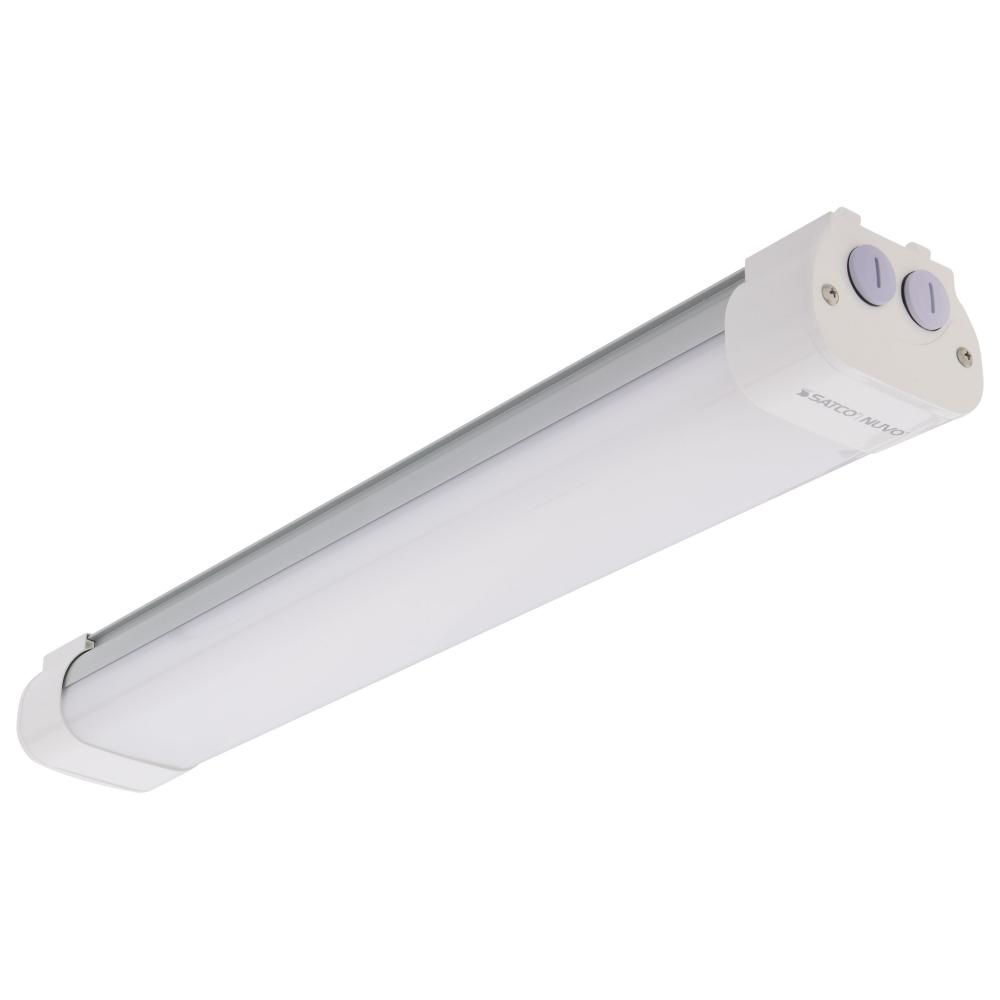

2 Foot; 20 Watt; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT Selectable; IP65 (A6CL0)
$108.00
Call For Price
Enlarge Image
Add to Cart
Description:
2 Foot; 20 Watt; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT Selectable; IP65 and IK08 Rated; 120V-347V
Availability:
  • Manufacturer may be Out Of Stock.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 3.11"
right arrow Width: 3.98"
Additional Details:
right arrow Finish: White / Gray
right arrow Category: Linear
right arrow Sub Category: Vapor Proof
right arrow Style: Utility
right arrow Avg Rated Hours: 50000
right arrow Bulb Shape1: Integrated LED
right arrow Bulb Type1: LED
right arrow Color Temperature: Warm to Cool White
right arrow Dimmable: Yes-Dimmable
right arrow Each Height: 4.33
right arrow Each Length: 25.98
right arrow Each Width: 6.89
right arrow Length: 23.62
right arrow Lumens: 2065L-2249L
right arrow Tariff Code: 9405.42.6000
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Amps: 0.167-0.058A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Beam Angle: 115
right arrow CA Prop-65: Lead
right arrow CCT Selectable: Yes
right arrow CEC: T20 Exempt - Fixtures Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Country Of Origin: Thailand
right arrow CRI: 80+
right arrow Dimmable Function: 0-10V; Integrated Sensor
right arrow DLC Classification: Standard
right arrow DLC Primary Use: Direct Linear Ambient Luminaires
right arrow Each Cube: 0.4485
right arrow Each Quantity: 1
right arrow Efficacy: 103.25/107.85/112.45 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: 120-347 Voltage - FOR USE IN CANADA
right arrow Feature 10: High lumens per Watt ratio
right arrow Feature 2: Heat and tamper resistant, water-resistant and dust-proof. Can be used in food-processing facilities
right arrow Feature 3: IP65 and IK08 Rated
right arrow Feature 4: CCT Selectable
right arrow Feature 5: 2KV built-in Surge Protection
right arrow Feature 6: Non-corrosive (PC) polycarbonate housing
right arrow Feature 7: Integrated Microwave Sensor
right arrow Feature 8: FCC and RoHS compliant
right arrow Feature 9: 5 Year Warranty
right arrow Finish Family: White
right arrow Fixture shape: Linear
right arrow Flicker Free: No
right arrow Has Driver: Yes
right arrow HID Equiv: 50W
right arrow Impact Rating (IK): IK08
right arrow Incandescent Equivalent: 125W
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow IOT Enabled: No
right arrow IP Rating: IP65
right arrow JA8 Compliant: No
right arrow Lens Finish: Opaque
right arrow Lens Material: Polycarbonate (PC)
right arrow Long Description: SATCO NUVO's 65-832R1 20 watt, 2 foot Tri-Proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this linear fixture is CCT selectable and wet location rated, with 2KV surge protection and an in
right arrow Material: Plastic
right arrow Mounting Procedure: Ceiling/Wall
right arrow NSF Approved: Yes
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -40C (-40F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Photocell: Integrated Microwave Sensor
right arrow Power Factor: >0.96
right arrow Quantity In Pack: 1
right arrow Rated For Vapor Tight Fixture: Yes
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Fixture
right arrow Short Description: 2' 20W LED TRI-PROOF W/SENSOR
right arrow Temperature (CCT): 3000K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 10.60%
right arrow Wattage Selectable: No
right arrow Weight Lb.: 2.87
right arrow Standard Category: Utility
right arrow Standard Subcategory: Other Utility
right arrow Standard Finish: Combination Finishes
right arrow Standard Option: LED , Prop 65 prop65.png
right arrow Standard Lumens: 1601-2600
right arrow Standard Kelvin: 4001-4500
Internal #:
A6CL0
