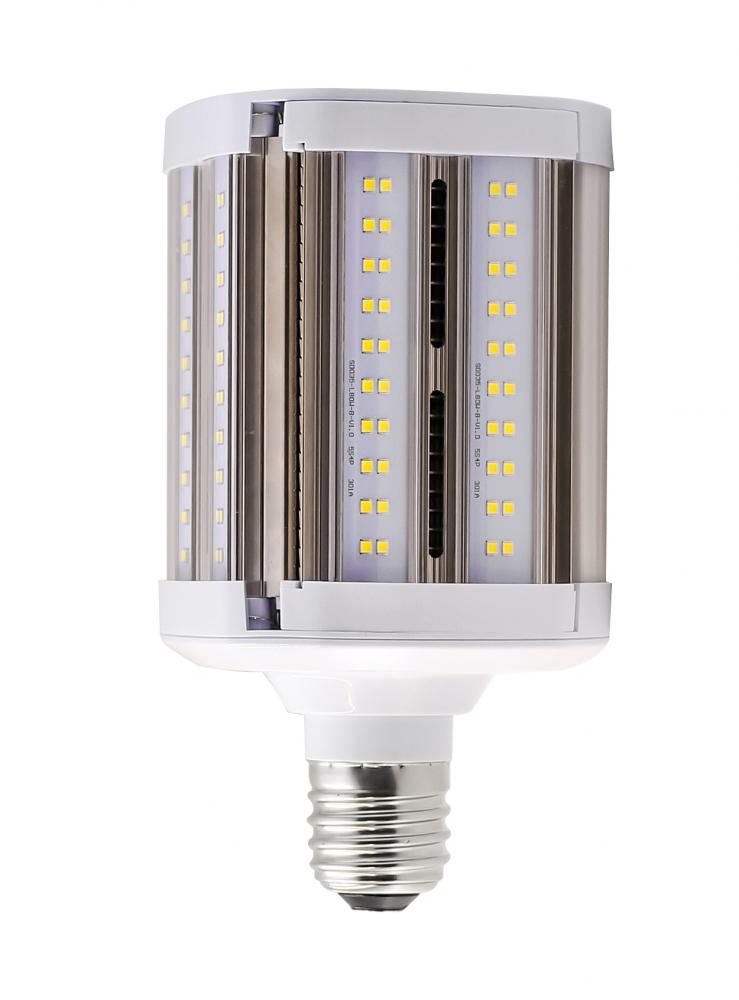

80 Watt LED Hi-lumen shoe box style lamp for commercial fixture applications; 5000K; Mogul base; (WMH1L)
$210.00
Call For Price
Enlarge Image
Description:
80 Watt LED Hi-lumen shoe box style lamp for commercial fixture applications; 5000K; Mogul base; 100-277 Volt
Availability:
  • Manufacturer may be Out Of Stock.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 4.38"
Additional Details:
right arrow Finish Family: No Finish
right arrow Category: LED
right arrow Sub-Category: HID Replacements
right arrow Volts: 120V-277V
right arrow Bulb Dimmable: Non-Dimmable
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 5000K
right arrow Bulb Shape: Corncob
right arrow Diameter: 4.38
right arrow EA Length: 10.32
right arrow Harmonized Codes: 8539.52.0091
right arrow Length: 8.69
right arrow Lumens: 10000L
right arrow Shap Carton Width: 5.71
right arrow Ship Carton Height: 6.3
right arrow Ship Weight: 3.46
right arrow Warranty: 5-Years
right arrow Weight: 3.2
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 180
right arrow Bulb ANSI Base: E39
right arrow Bulb Base: Mogul
right arrow Bulb Finish: Clear
right arrow Burning Position: Horizontal
right arrow Carton Cubic Feet: 0.2148
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: No
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Natural Light
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow DLC Approved: No
right arrow Efficacy: 125.00 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Has Camera: No
right arrow Has Emergency Battery: No
right arrow HID Equivalent: 250W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 400W
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow IP Rating: IP64
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp Filament: LED
right arrow Lens: Yes
right arrow Lens Finish: Clear
right arrow Location Rating: Damp
right arrow Minimum Compartment Size: Length: 9.2 in. Width: 11 in. Depth: 11 in.
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -30C (-22F) to +45C (+113F)
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow RoHS Compliant: Yes
right arrow SDS class: LED_Lamp
right arrow Short Description: 80W/LED/HID/SB/5K/E39/100-277V
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Wattage Selectable: No
right arrow Watts: 80W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
Internal #:
WMH1L
